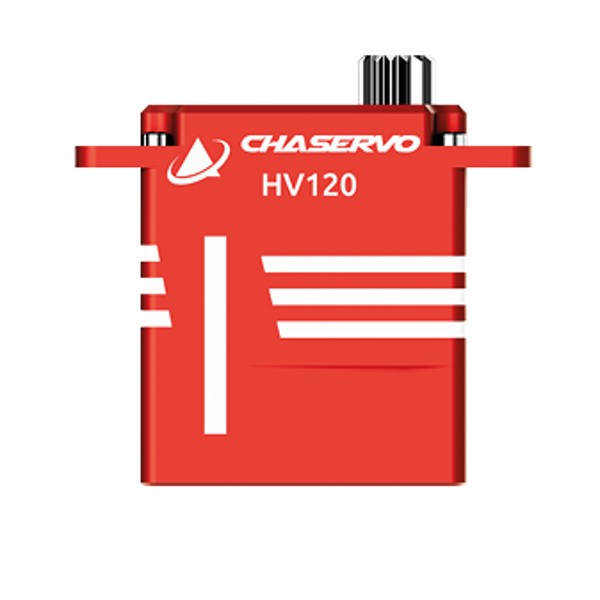

CHASERVO HV120

Dimensions: 30 x 12 x 35 mm

Weight: 1.30 oz (37 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 4.8 – 8.4V

Output Shaft Spline: 25T, 0.236 in (6 mm)

Holding Torque @ 4.8V: 249.97 oz·in (18.0 kg·cm)

Holding Torque @ 6.0V: 305.52 oz·in (22.0 kg·cm)

Holding Torque @ 7.4V: 347.18 oz·in (25.0 kg·cm)

Holding Torque @ 8.4V: 388.84 oz·in (28.0 kg·cm)

Output Torque @ 4.8V: 138.87 oz·in (10.0 kg·cm)

Output Torque @ 6.0V: 166.64 oz·in (12.0 kg·cm)

Output Torque @ 7.4V: 208.31 oz·in (15.0 kg·cm)

Output Torque @ 8.4V: 249.97 oz·in (18.0 kg·cm)

No-load Speed @ 4.8V: 0.16sec/60°

No-load Speed @ 6.0V: 0.13sec/60° @ 6.0 V

No-load Speed @ 7.4V: 0.11sec/60°

No-load Speed @ 8.4V: 0.09sec/60°

Case Material: Aluminium

Gear Set Material: Metallgetriebe

Position sensor: Contactless / Hall sensor

Motor: 4 Pole Brushless

Working Frequency: 1520µs/333Hz

Pulse Range: 500 μs – 2500 μs

Programmable: Ja
