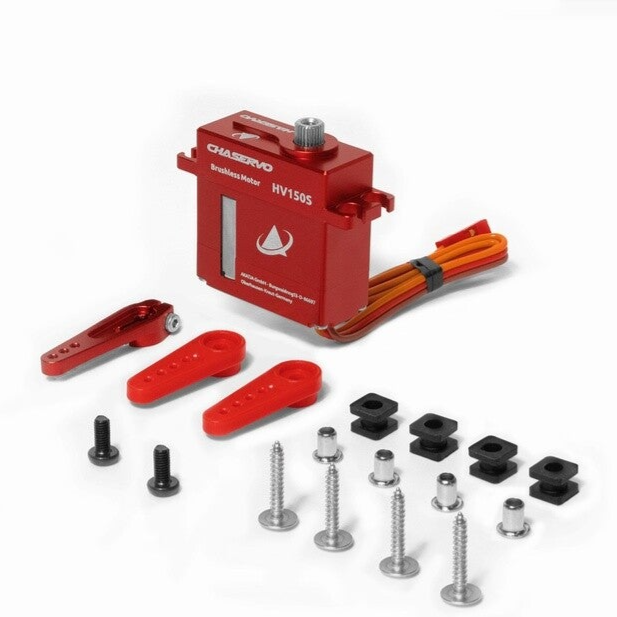

CHASERVO HV150S

Dimensions: 35.5 x 15 x 35.5 mm

Weight: 1.79 oz (51 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 4.8 – 8.4V

Output Shaft Spline: 25T, 0.236 in (6 mm)

Holding Torque @ 4.8V: 10.0 kg·cm

Holding Torque @ 6.0V: 12.5 kg·cm

Holding Torque @ 7.4V: 15 kg·cm

Holding Torque @ 8.4V: 16.5 kg·cm

Output Torque @ 4.8V: 6.0 kg·cm

Output Torque @ 6.0V: 104.1 oz·in (7.5 kg·cm)

Output Torque @ 7.4V: 9.0 kg·cm

Output Torque @ 8.4V: 10.0 kg·cm

No-load Speed @ 4.8V: 0.079sec/60°

No-load Speed @ 6.0V: 0.061sec/60°

No-load Speed @ 7.4V: 0.050sec/60°

No-load Speed @ 8.4V: 0.043sec/60°

Version: HV150S

Case Material: Aluminium

Gear Set Material: Metallgetriebe

Position sensor: Potentiometer

Motor: 4 Pole Brushless

Working Frequency: 1520µs/333Hz

Pulse Range: 900µs-2100µs

Programmable: Ja
