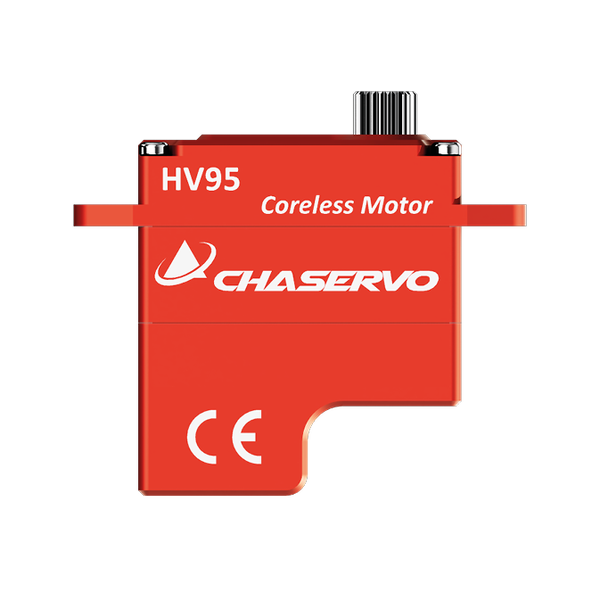

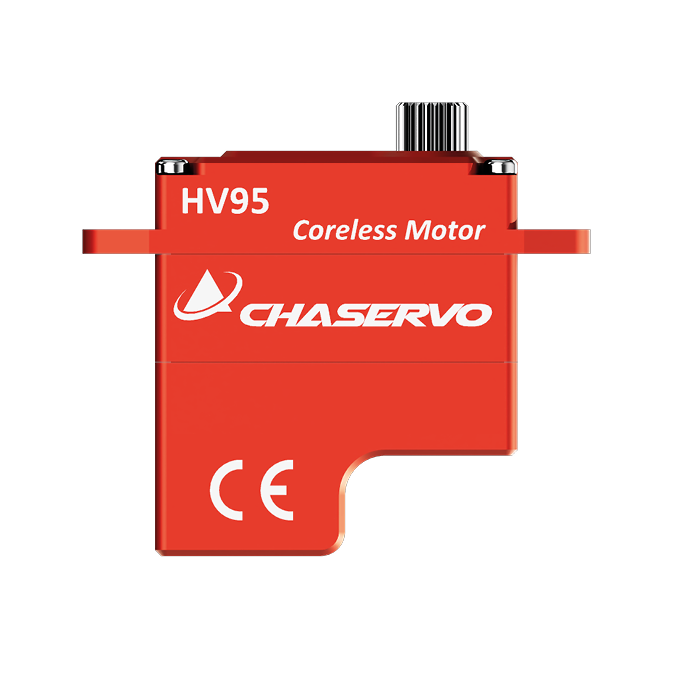

CHASERVO HV95

Brand: Chaservo

Dimensions: 1.18 x 0.37 x 1.31 in (30 x 9.5 x 33.5 mm)

Weight: 0.76 oz (21.7 g)

Output Shaft Spline: 25T, 0.236 in (6 mm)

Rated Voltage: DC 7.4V

Voltage Range: DC 4.8 – 8.4V

Holding Torque @ 6.0V: 118.0 oz·in (8.5 kg·cm)

Holding Torque @ 7.4V: 145.81 oz·in (10.5 kg·cm)

Holding Torque @ 8.4V: 159.7 oz·in (11.5 kg·cm)

Output Torque @ 6.0V: 104.1 oz·in (7.5 kg·cm)

Output Torque @ 7.4V: 9.3 kg·cm

Output Torque @ 8.4V: 141.6 oz·in (10.2 kg·cm)

No-load Speed @ 6.0V: 0.17sec/60°

No-load Speed @ 7.4V: 0.15sec/60°

No-load Speed @ 8.4V: 0.12sec/60°

max. Current @ 6.0V: 1.16 A

max. Current @ 7.4V: 1.32 A

max. Current @ 8.4V: 1.58 A

Case Material: Aluminium

Gear Set Material: Metallgetriebe

Ball Bearing: 2 x Ball Bearing

Position sensor: Potentiometer

Motor: Coreless DC

Working Frequency: 1520µs/333HzPulse Range: 500 μs – 2500 μs

Programmable: Ja
