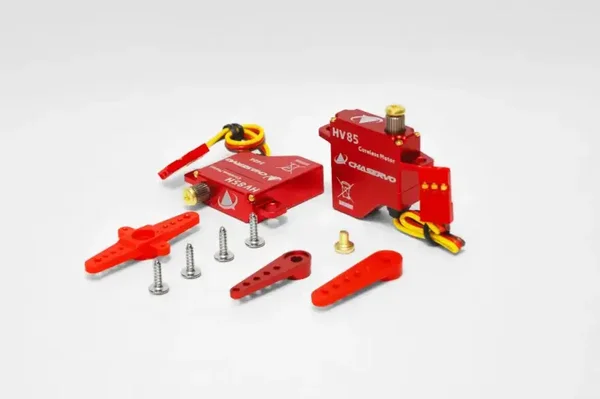

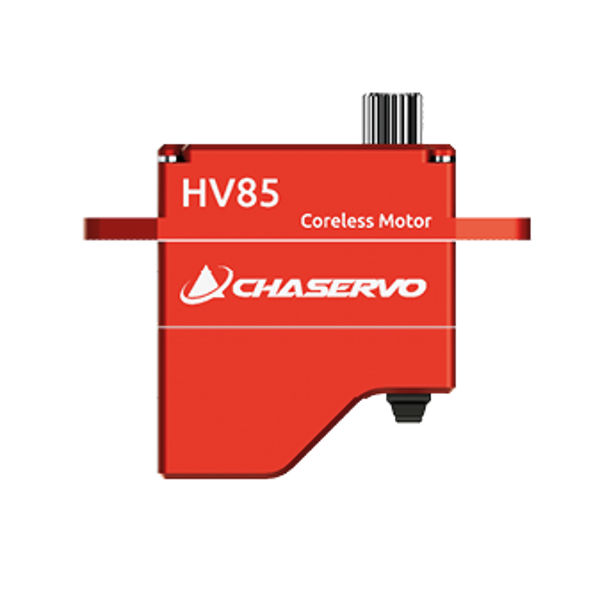

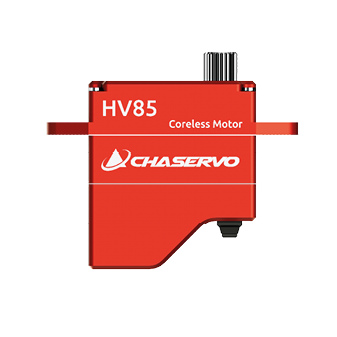

CHASERVO HV85

Brand: Chaservo

Dimensions: 0.95 x 0.33 x 1.04 in (24 x 8.5 x 26.5 mm)

Weight: 0.49 oz (14 g)

Output Shaft Spline: 25T, 0.196 in (5 mm)

Rated Voltage: DC 7.4V

Voltage Range: DC 3.3 – 9.0V

Holding Torque @ 6.0V: 99.99 oz·in (7.2 kg·cm)

Holding Torque @ 7.4V: 124.98 oz·in (9.0 kg·cm)

Holding Torque @ 8.4V: 136.10 oz·in (9.8 kg·cm)

Output Torque @ 6.0V: 90.27 oz·in (6.5 kg·cm)

Output Torque @ 7.4V: 8.2 kg·cm

Output Torque @ 8.4V: 123.59 oz·in (8.9 kg·cm)

No-load Speed @ 6.0V: 0.16sec/60°

No-load Speed @ 7.4V: 0.12sec/60°

No-load Speed @ 8.4V: 0.11sec/60°

max. Current @ 6.0V: 0.86 A

max. Current @ 7.4V: 1.08 A

max. Current @ 8.4V: 1.35 A

Case Material: Aluminium

Gear Set Material: Metallgetriebe

Ball Bearing: 2 x Ball Bearing

Position sensor: Potentiometer

Motor: Coreless DC

Working Frequency: 1520µs/333HzPulse Range: 900µs-2100µs

Programmable: Ja
