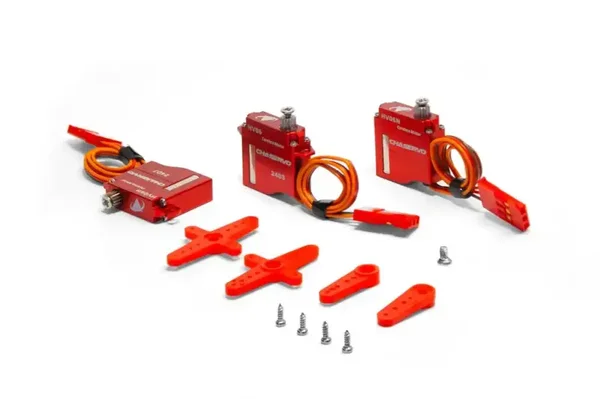

CHASERVO HV06

Brand: Chaservo

Dimensions: 0.75 x 0.24 x 0.73 in (19 x 6 x 18.5 mm)

Weight: 0.21 oz (6.1 g)

Output Shaft Spline: 15T, 4mm

Rated Voltage: DC 7.4V

Voltage Range: DC 3.3 – 9.0V

Holding Torque @ 6.0V: 22.91 oz·in (1.65 kg·cm)

Holding Torque @ 7.4V: 30.55 oz·in (2.2 kg·cm)

Holding Torque @ 8.4V: 36.80 oz·in (2.65 kg·cm)

Output Torque @ 6.0V: 20.83 oz·in (1.5 kg·cm)

Output Torque @ 7.4V: 2.0 kg·cm

Output Torque @ 8.4V: 30.55 oz·in (2.2 kg·cm)

No-load Speed @ 6.0V: 0.07sec/60°

No-load Speed @ 7.4V: 0.06sec/60°

No-load Speed @ 8.4V: 0.05sec/60°

max. Current @ 6.0V: 0.61 A

max. Current @ 7.4V: 0.63 A

max. Current @ 8.4V: 0.67 A

Case Material: Aluminium

Gear Set Material: Metallgetriebe

Ball Bearing: 2 x Ball Bearing

Position sensor: Potentiometer

Motor: Coreless DC

Working Frequency: 1520 μs / 20 KHzPulse Range: 900µs-2100µs

Programmable: Ja
