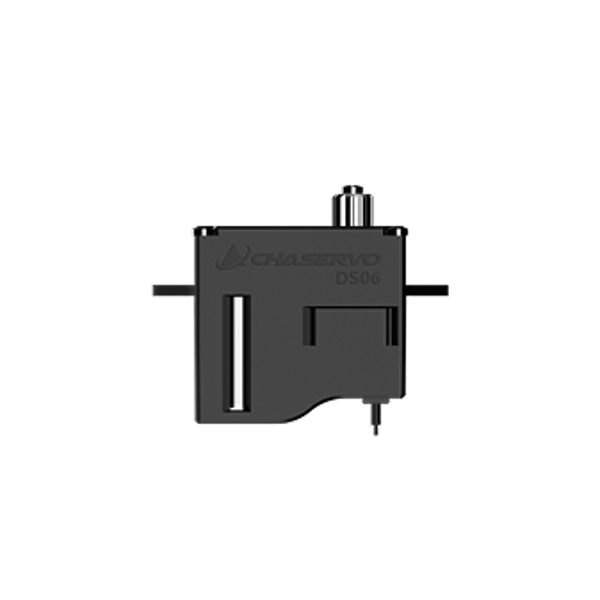

CHASERVO DS06

Brand: Chaservo

Version: DS06

Rated Voltage: DC 7.4V

Voltage Range: DC 3.3 – 9.0V

Output Shaft Spline: 15T, 4mm

Holding Torque @ 3.5V: 12.49 oz·in (0.90 kg·cm)

Holding Torque @ 6.0V: 22.91 oz·in (1.65 kg·cm)

Holding Torque @ 8.4V: 27.77 oz·in (2.00 kg·cm)

Output Torque @ 3.5V: 11.11 oz·in (0.8 kg·cm)

Output Torque @ 6.0V: 20.83 oz·in (1.5 kg·cm)

Output Torque @ 8.4V: 24.99 oz·in (1.8 kg·cm)

No-load Speed @ 3.4V: 0.12sec/60°

No-load Speed @ 6.0V: 0.08sec/60°

No-load Speed @ 8.4V: 0.07sec/60°

max. Current @ 3.5V: 0.30 A

max. Current @ 6.0V: 0.58 A

max. Current @ 8.4V: 0.67 A

Case Material: High Quality Technopolymer

Gear Set Material: Hardened Steel + Plastic

Position sensor: Potentiometer

Motor: Hollow Cup DC Motor

Working Frequency: 1520 μs / 20 KHz

Pulse Range: 900µs-2100µs

Programmable: Ja

Dimensions: 0.78 x 0.29 x 0.74 in (20 x 7.4 x 18.7 mm)Weight: 0.21 oz (6.1 g)
