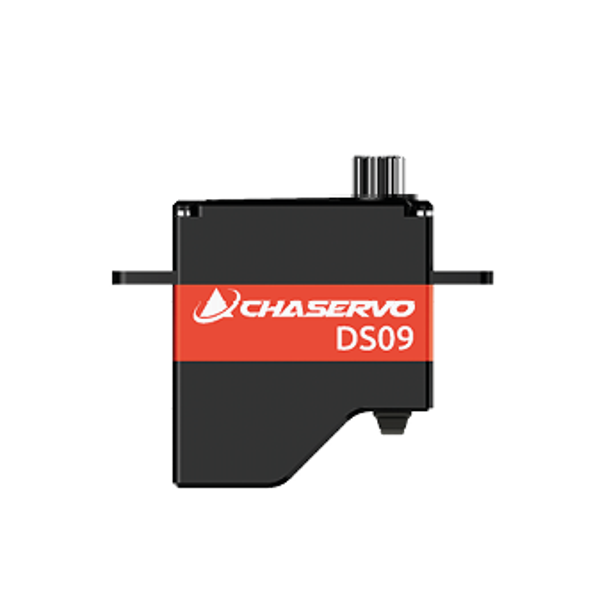

CHASERVO DS09

Brand: Chaservo

Version: DS09Dimensions: 0.93 x 0.35 x 1.08 in (23.5 x 9 x 27.5 mm)

Weight: 0.42 oz (12 g)

Rated Voltage: DC 7.4V

Voltage Range: DC 3.3 – 9.0V

Output Shaft Spline: 25T, 0.196 in (5 mm)

Holding Torque @ 6.0V: 97.21 oz·in (7.0 kg·cm)

Holding Torque @ 7.4V: 111.09 oz·in (8.0 kg·cm)

Holding Torque @ 8.4V: 124.98 oz·in (9.0 kg·cm)

Output Torque @ 6.0V: 69.43 oz·in (5.0 kg·cm)

Output Torque @ 7.4V: 6.0 kg·cm

Output Torque @ 8.4V: 90.27 oz·in (6.5 kg·cm)

No-load Speed @ 6.0V: 0.13sec/60°

No-load Speed @ 7.4V: 0.11sec/60°

No-load Speed @ 8.4V: 0.10sec/60°

max. Current @ 6.0V: 0.90 A

max. Current @ 7.4V: 1.15 A

max. Current @ 8.4V: 1.25 A

Case Material: High Quality Technopolymer and AluminiumGear Set

Material: Hardened Steel + BrassBall

Bearing: 2 x Ball Bearing

Position sensor:

PotentiometerMotor: Hollow Cup

DC MotorWorking Frequency: 1520 μs / 20 KHzPulse Range: 900µs-2100µs

Programmable: Ja
